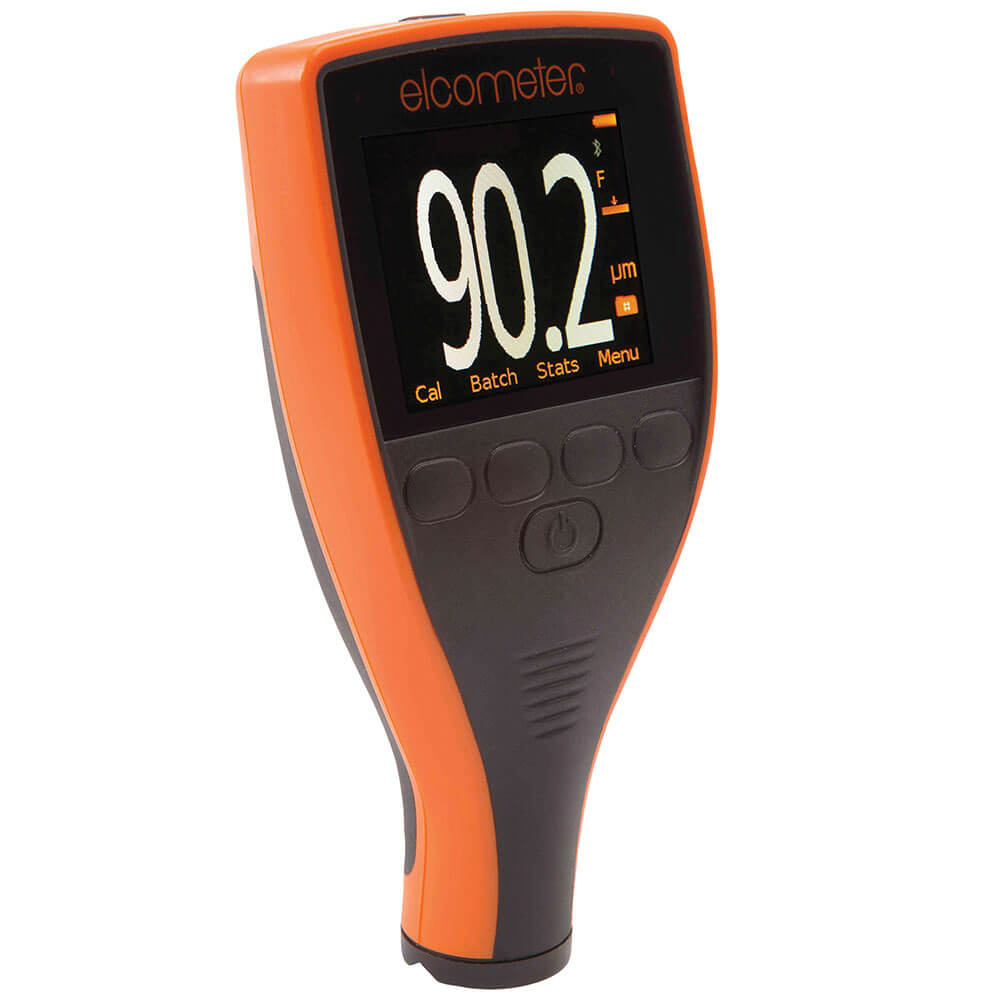

Elcometer 456 FNF Model S DFT Standard Paint Coating Thickness Gauge
Regular price
$1,499.99 AUD
inc. GST
Couldn't load pickup availability
Application
For measuring non-magnetic coatings (paints, plastics, chrome, copper, zinc etc.) on magnetic substrates and for measuring non-conductive coatings (paints, plastics etc.) on non-metallic substrates (copper, aluminium, zinc, bronze, brass, etc.)
Execution
- Robust ABS plastic housing
- Large, easy-to-read 2.4" colour display
- Degree of protection: IP 64, dust-proof and water-resistant
- Data logging, concave from R=2 and convex from R=25
- Connection for FNF combination sensor for ferrous (F) and/or non-ferrous (NF) metal substrates
Advantage
- Fast samplings rates of over 70 measurements per minute
- Various calibration methods stored
- View and delete measured values and delete batches
Notes
Probes not included in scope of delivery. For suitable probes, see 45800 650-665.
Measuring instrument, hand strap, transport case, screen protector, USB cable, ElcoMaster 2.0™ software, protective sleeve, 2x AA batteries, operating instructions
- Model: A456CFNFSS
- Type: S
- Probe design: FNF
- Test probe: Separately
- Min./max. layer thickness display range: 0-31 mm
- Layer thickness resolution: < 100 µm: 0.1 µm
- Accuracy (+/-): 50 µm
- Min./max. accuracy (+/-) in %: 1-3 %
