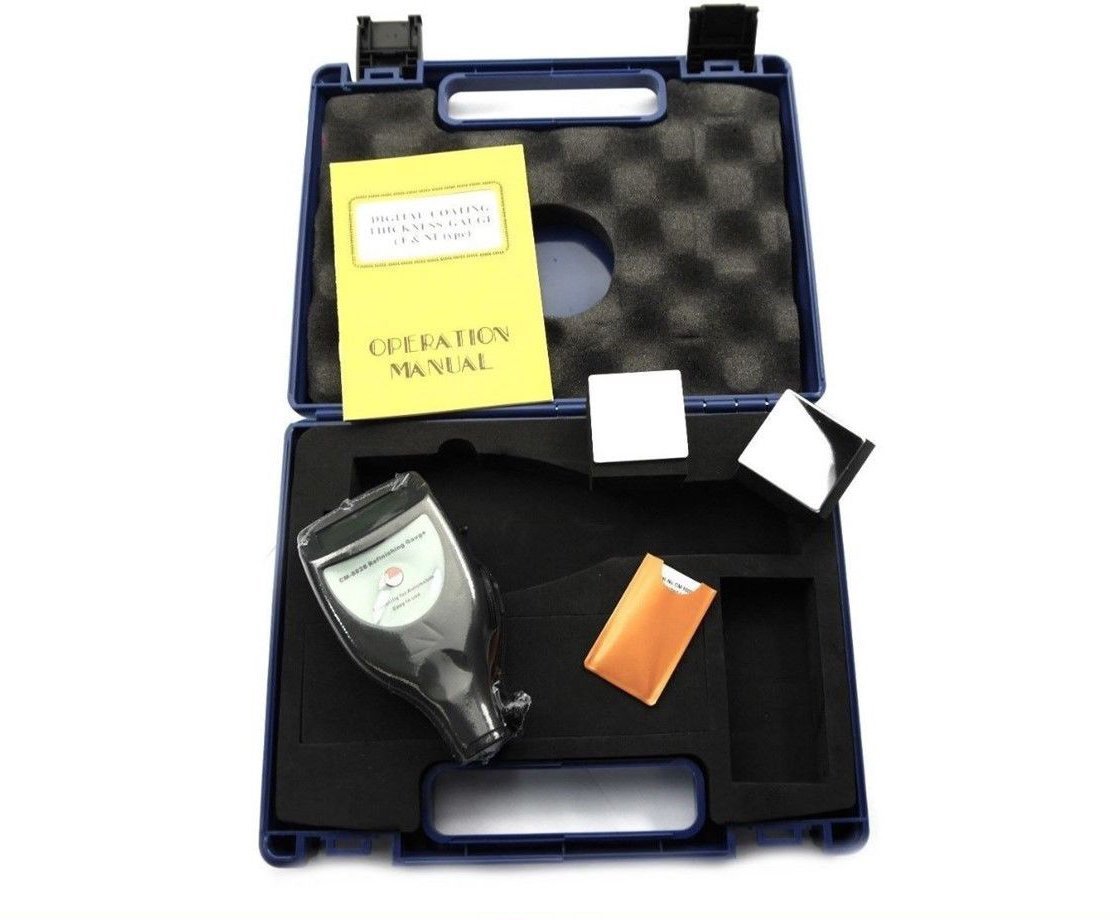

Digital Paint Coating Thickness Gauge Instrument Tool Diagnostic CM-8828

Only 4 left
SKU: V8828
Regular price $899.99 AUD inc. GST
This is a Sample Product Title
Was $200.00 Now $100.00

Detailed Product Description

Product Name: CM-8828 Coating Thickness Gauge Calibration Block: Included

Resolution: 0.1/1 Accuracy: ±1-3%n Or ±2.5um

Measuring Range: 0-1250um/0-50mil Usage: Coating Thickness Testing Gauge

Probe: Built-in F&NF Type Optional Accessory: USB, RS-232 Data Cable With Software

Power: Electronic

Coating Thickness Meter CM-8828 NDT instruments, CM8828 paint thickness tester, auto paint thickness meter


The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.


* Two measuring methods: magnetic induction (F) and eddy current (N)

* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the

coating thickness of curved objects and tiny objects.)

* Metric/imperial system selectable.

* Manual or automatic shut down.

* Auto memory of calibration value,and auto recognize the substrate.

* Operation process have buzzing reminder,while no buzzing in continuous mode.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.

* One key operation, fast and convenient.

Operating Principle Magnetic Induction / Eddy Current (F / NF)

Measuring Range 0~1250 um / 0~50 mil

Resolution 0.1 um / 1 um

Min. Radius Workpiece F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm

Min. Measuring Area 6 mm

Min. Sample Thickness 0.3 mm

Accuracy ± 1~3%n or ± 2.5 um

Auto Power Off

Metric / Imperial Convertible

Battery Indicator Low Battery Indicator

Operating Conditions Temp. 0~40 °C, Humidity: 10~90 %RH

Power Supply 4 x 1.5 V AAA (UM-4) Battery

Dimensions 126 x 65 x 27 mm

Weight 81 g (Not Including Batteries)
