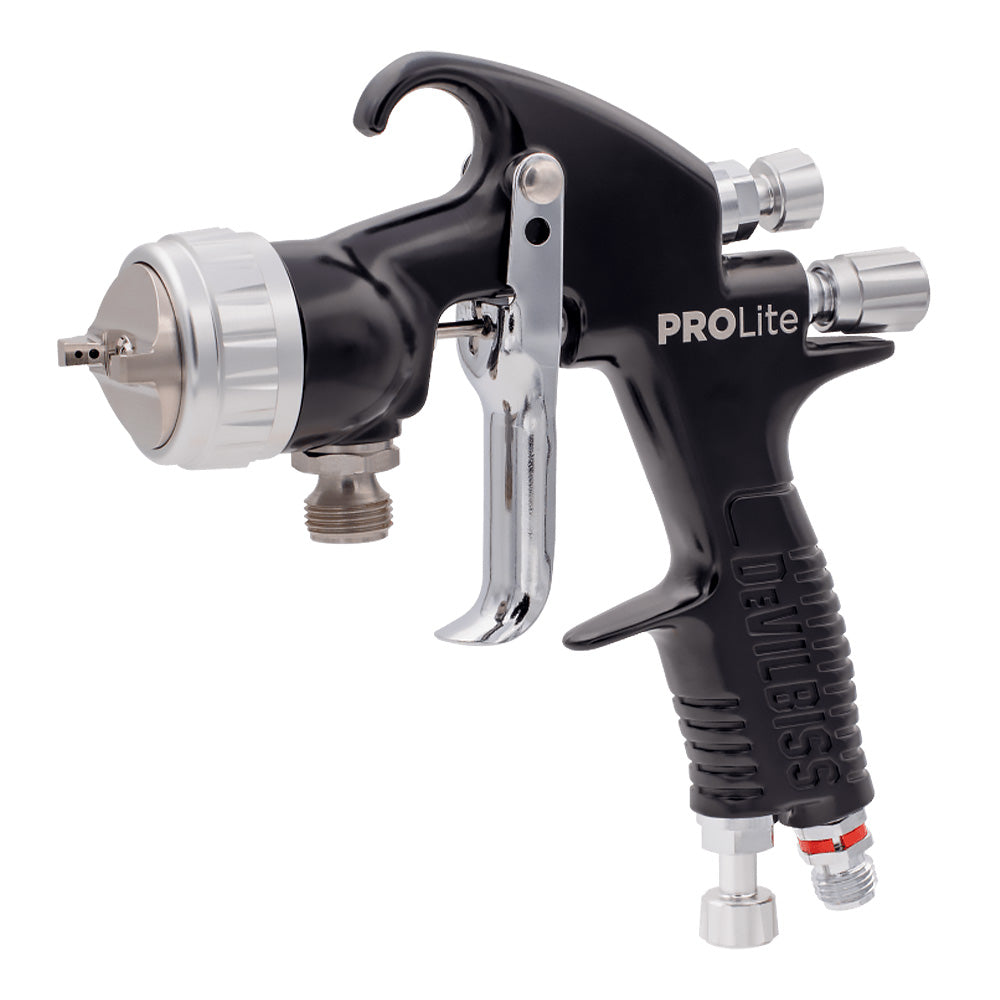

Devilbiss PROLite PTE10 Pressure / Suction spray gun C86 1.8

Devilbiss PROLite PTE10 Pressure / Suction spray gun C86 1.8

Regular price $599.99
Unit price  per

PROLite Pressure / Suction spray gun

Delivering high-performance application of waterborne and solventborne refinish paints and coatings

Perfect for any climate and paint, the DeVilbiss PROLite spray gun delivers exceptional performance and color match capabilities for today’s automotive refinish coatings that can be difficult to atomize, such as low VOC, high solids, pearls or metallic materials. This PROLite performance is achieved utilizing high-capacity air passages and a linear air valve to provide unrestricted, even flow of compressed air through the gun body, enabling the precisionengineered air caps to produce superior atomization with consistent droplet distribution throughout the entire spray pattern.

Overview

PROLite is precision built using the highest quality materials for a longer working life. The forged aluminum body features QuickClean™ coating with non-stick properties that reduce clean up time. The high-grade stainless steel fluid nozzles and needles, plus nickel plated brass air caps all contribute to a gun that will last in the most extreme professional spray environments. When routine maintenance is needed, the easy-to-maintain design ensures minimum production downtime. In approval testing with paint company technicians over the last decade, the PROLite has consistently met the highest color match standards, ensuring that you get the job done right — the first time and every time.

Features:

  • Lightweight and comfortable handle design with reduced trigger travel to decrease operator fatigue
  • Uniform atomization and spray pattern for ease of application
  • Advanced range of air cap technology for exceptional application performance with the latest waterborne and solventborne coatings
  • Environmental legislation-compliant atomization with high transfer efficiency resulting in significant paint savings
  • Forged aluminum gun body with unique QuickClean™ coating and a removable air baffle for a longer working life

echnical Specifications

PROLITE PRESSURE / SUCTION SPRAY GUN

PROLite Pressure/Suction
Weight (gun only) 500g
Gun Body Anodized QuickClean Aluminum
Air Cap Plated Brass
Air Cap Retaining Ring & Knobs Clear Anodized Aluminum
Fluid Nozzle Stainless Steel
Fluid Needle Stainless Steel
Air Inlet Thread 1/4" Universal

Air Cap Offerings

  Recommended Inlet Pressure Max Air Consumption Fan Pattern Size Nozzle Sizes
Air Cap Atomization Type Applications PSI BAR SCFM SLDM in mm
TE30 High Efficiency Multi-Purpose 15-29 10.20 12.7 360 10.5-11.5 275-290 0.85-1.8mm
TE40 High Efficiency Multi-Purpose 29-44 2.0-3.0 12.0 340 13.0-16.5 330-420 0.85-1.8mm
C797 Conventional Multi-Purpose 29-44 2.0-3.0 14.5 410 13.0-16.5 330-420 0.85-1.8mm
HV40 HVLP Multi-Purpose 17 1.2 10.5 300 11.0-13.0 28-330 0.85-1.8mm
