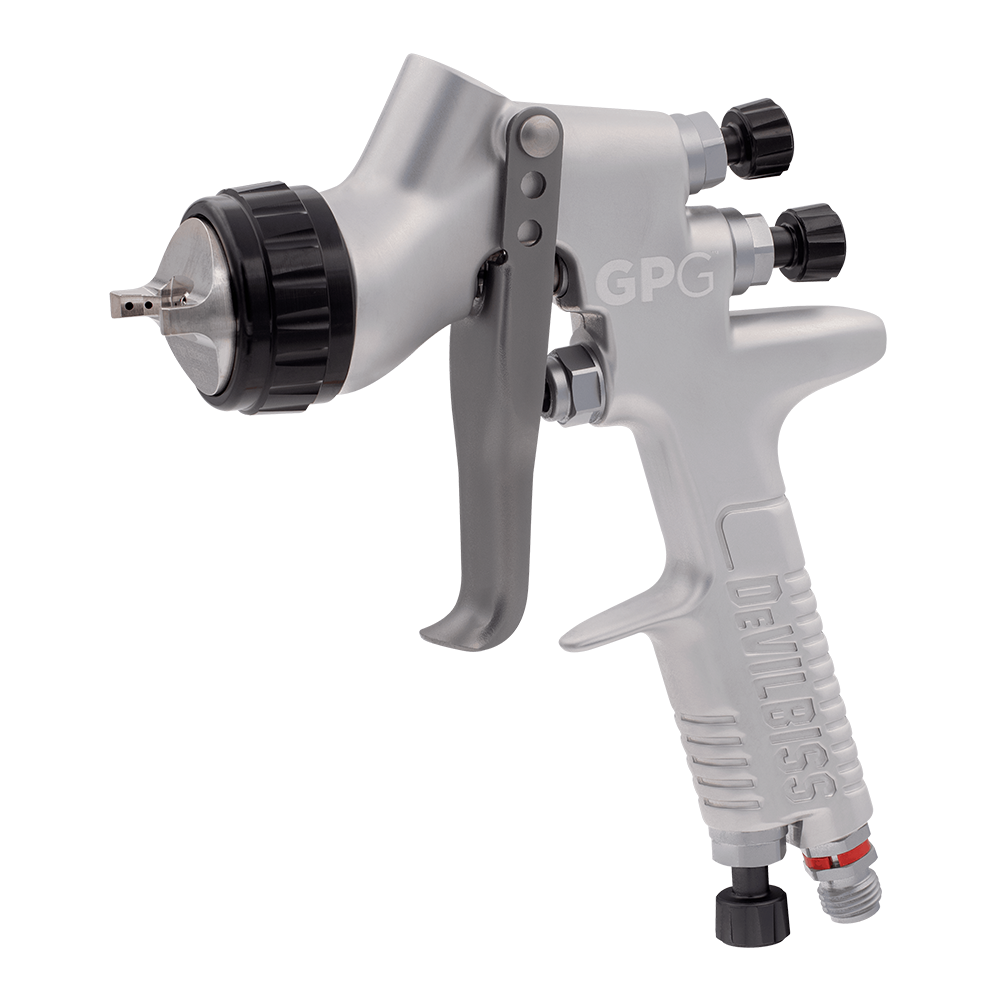

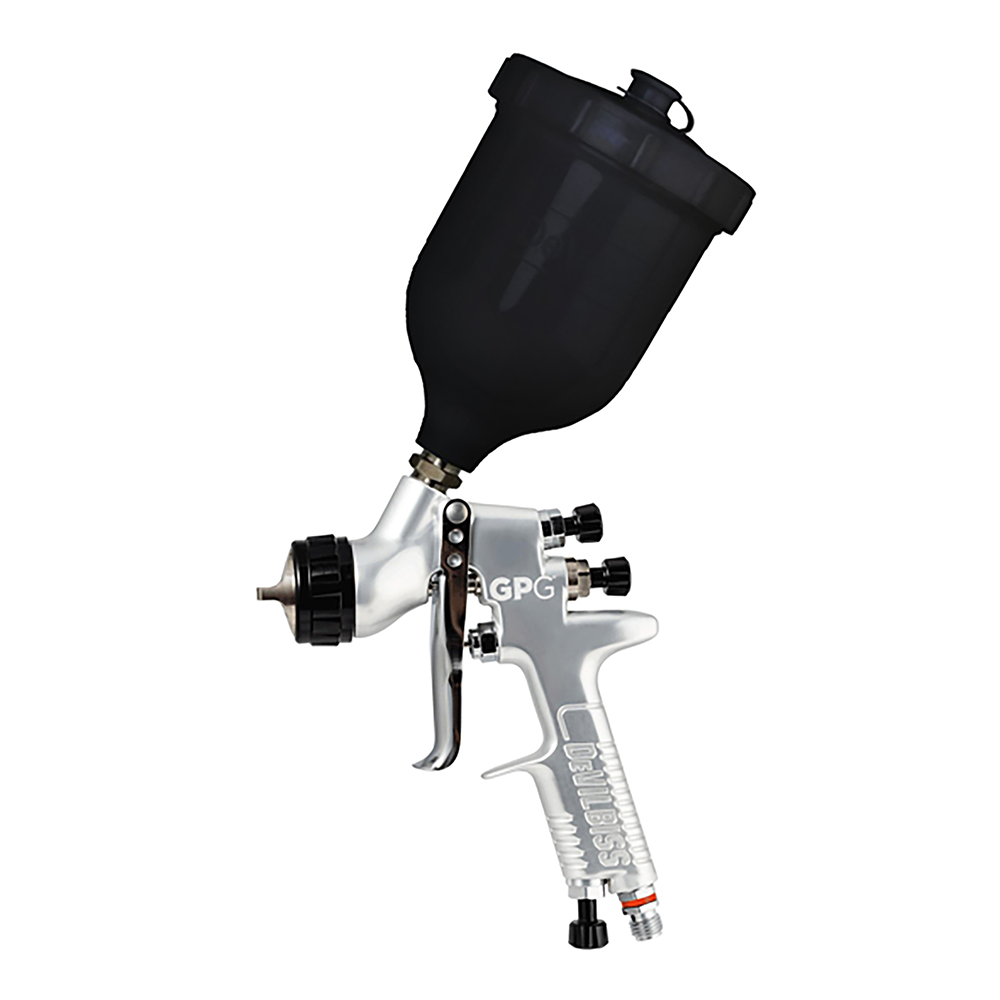

ABOUT DEVILBISS GPG GRAVITY SPRAY GUN

• Suitable for all paints including latest generation waterbased materials
• First-class atomisation and material distribution
• Large spray pattern for fast and easy application
• Drop forged aluminium spray gun body, anodised
• Complete with airflow “cheater” valve
• Utilises a new design air valve for smooth triggering control
• All-new ergonomic spray gun body with improved “fit and feel”

With the new lightweight design, inspired by the GTi Pro Lite, the new PRI Pro Lite is even more comfortable and easier to use for the sprayer with the smooth control from the GTi Pro Lites low kick air valve. Suitable for all primers including water-based materials, surfacers and polyesters. The old P1 air cap has now been replaced by the PR10 High-Efficiency air cap which delivers fine atomisation with a well-formed large and uniform spray pattern. This makes the spray gun ideal for primer coverage.

FLUID TIP GUIDE

• UV 1 - Suitable for standard viscosity paints

• UV 2 - Suitable for thicker viscosity paints and primers.

UV COMPONENTS

• UV Fluid Needle

• UV Gravity Cup

TECHNICAL SPECIFICATIONS

Air Inlet Pressure: 2.0 bar (29psi)
Air Consumption: 300 L/min (10.6cfm)
Air Inlet Thread: 1/4” Universal
Cup Capacity: 560ml
Weight (gun & cup): 620g
Air Cap & Ring: Plated Brass
Fluid Tip: Stainless Steel
Fluid Needle: Stainless Steel

The UV2 Air Cap is bigger than the UV1 Air cap.
