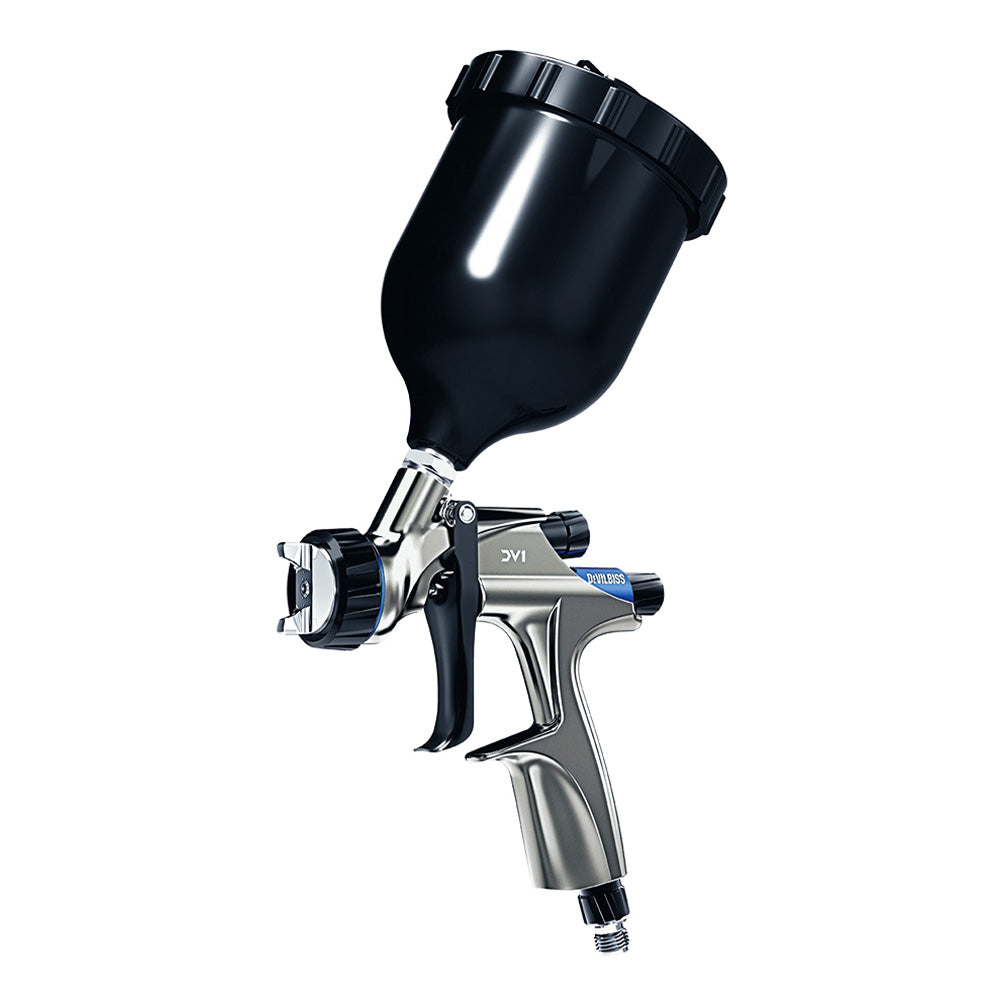

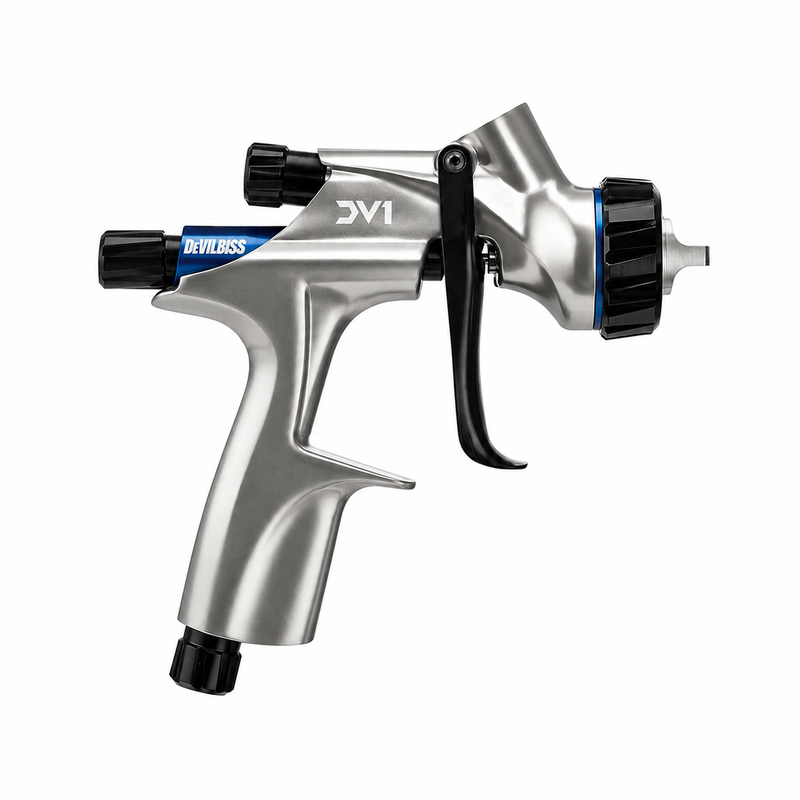

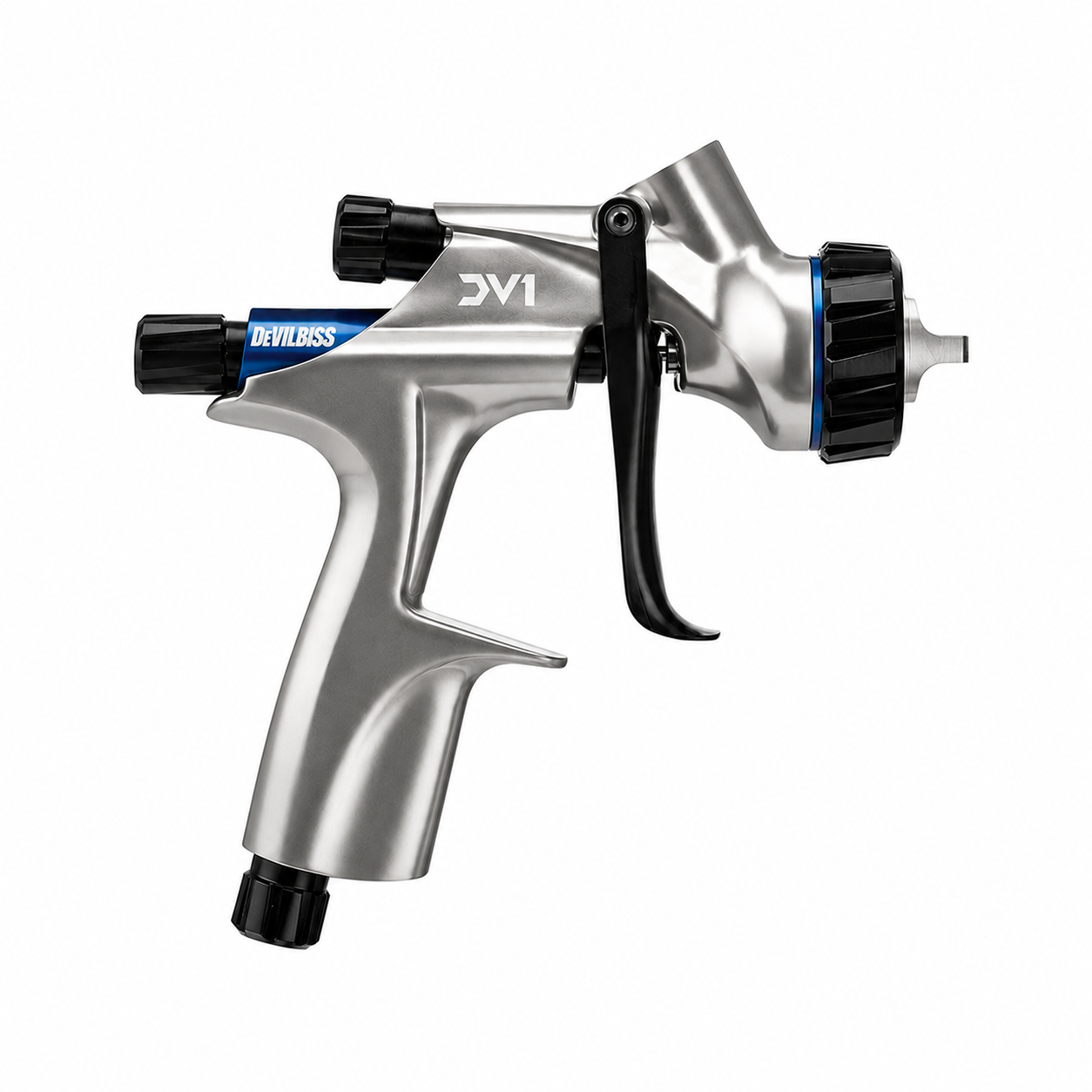

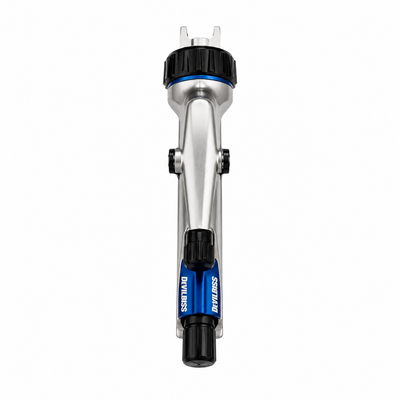

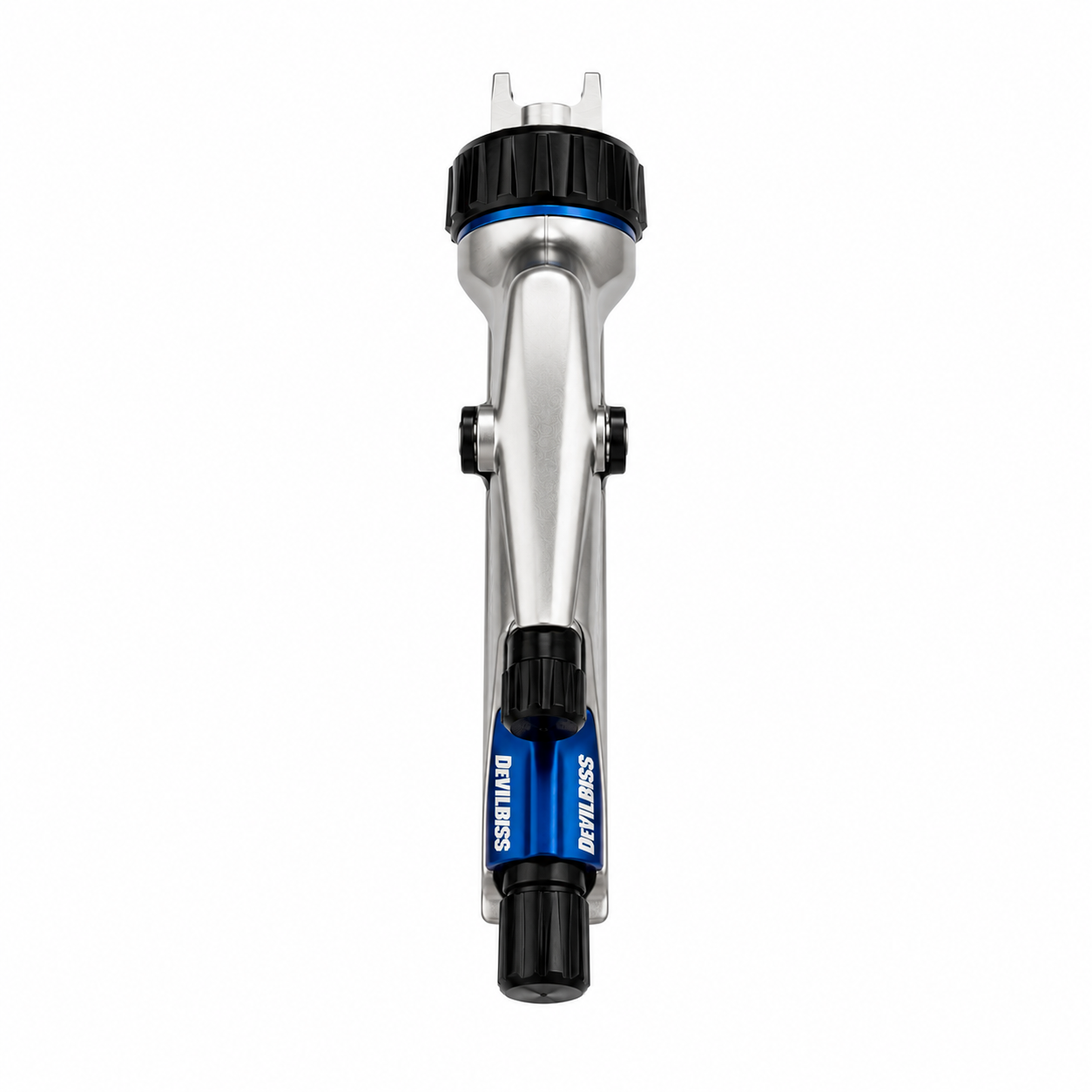

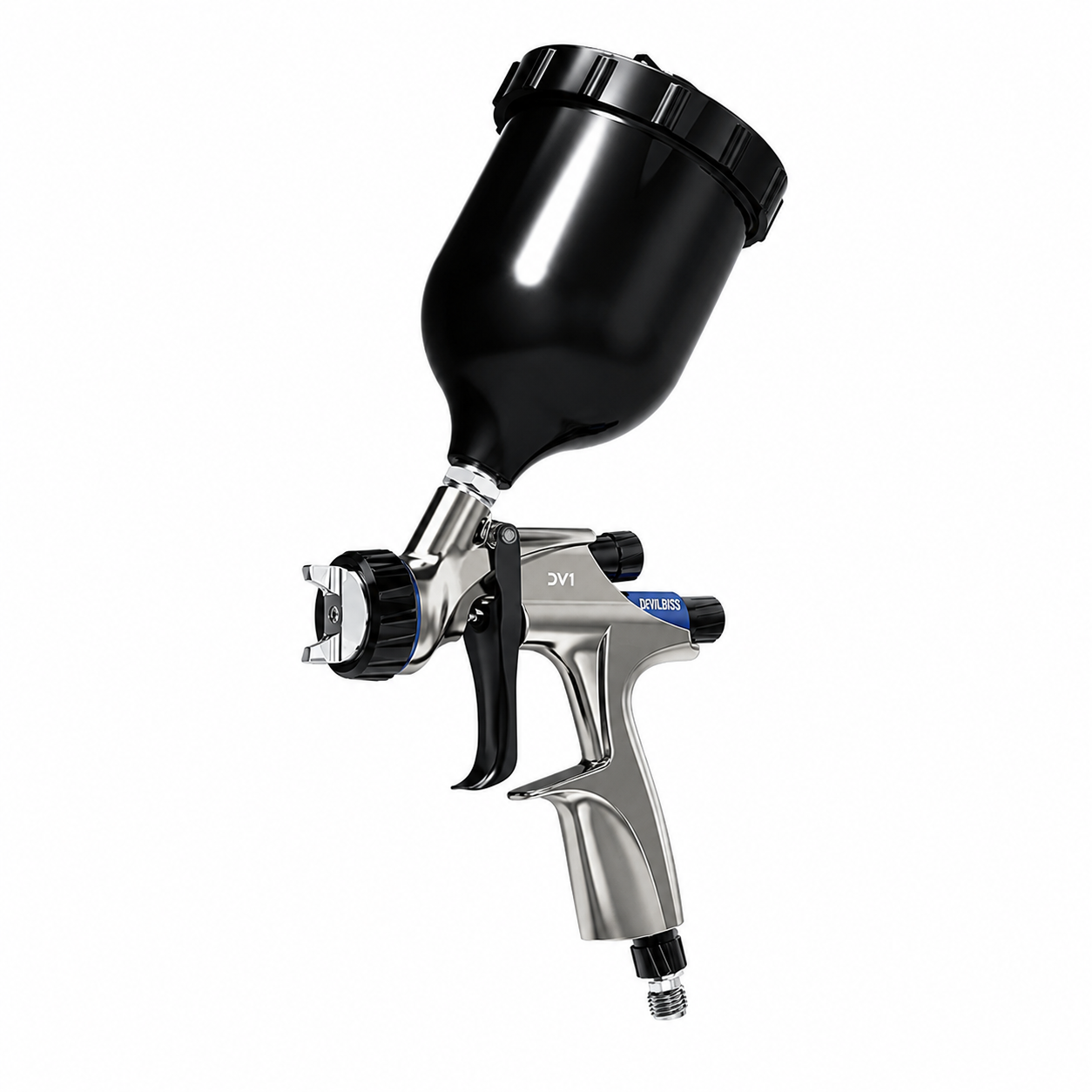

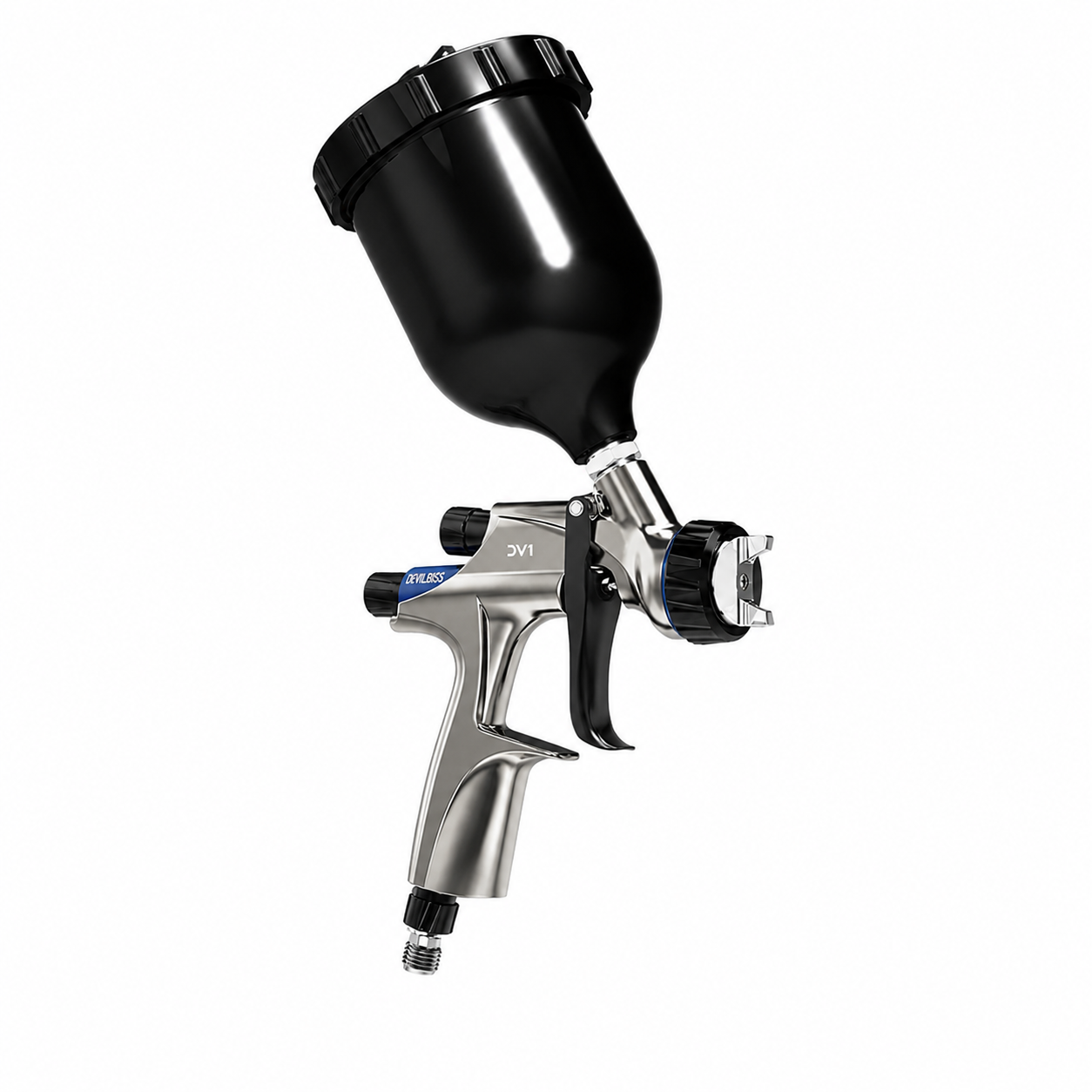

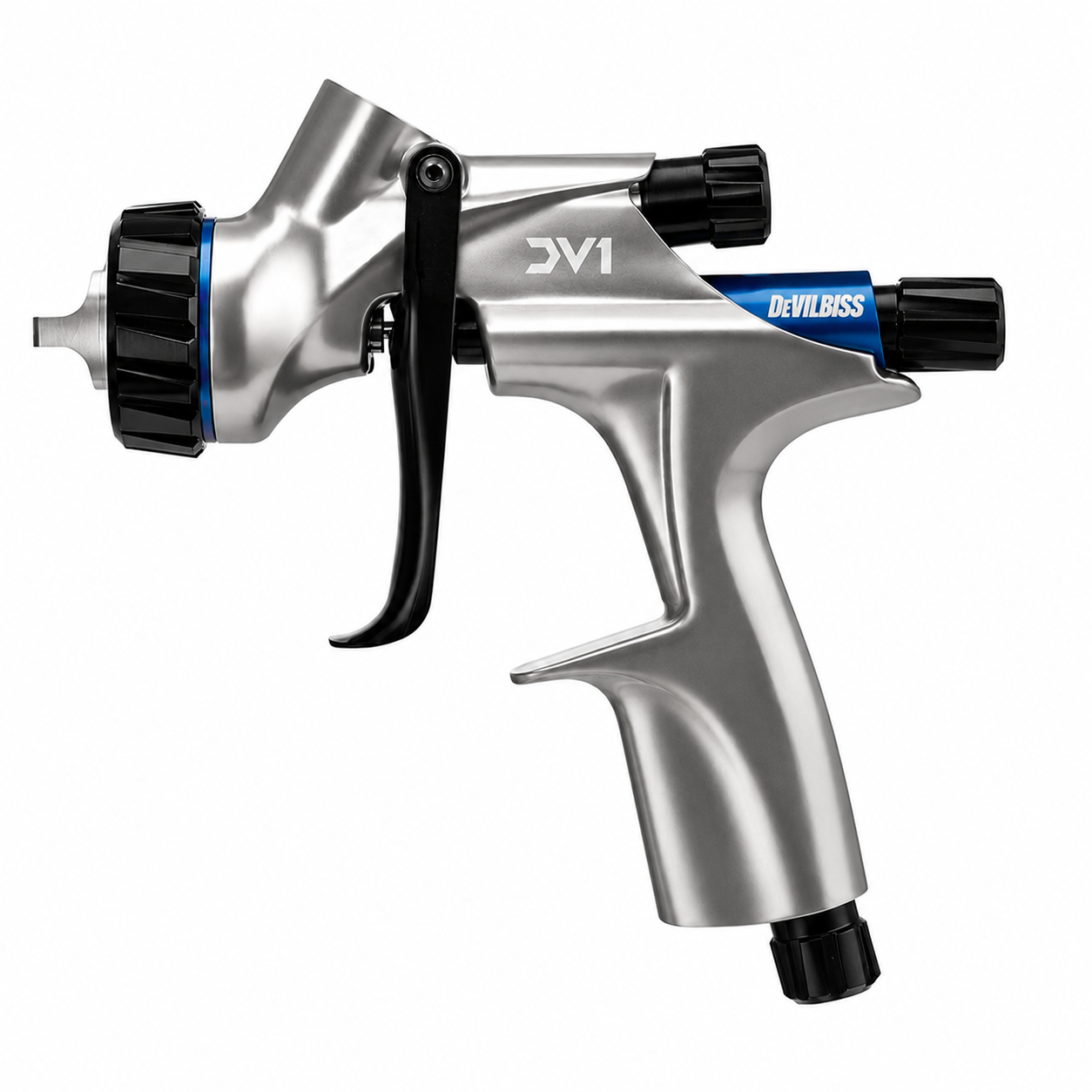

DEVILBISS DV1-B Basecoat HVLP Gravity Feed Spray Gun 1.3mm With Cup

The DEVILBISS DV1-B Basecoat Spray Gun is a premium HVLP gravity feed spray gun engineered specifically for modern automotive basecoat application. Developed by professional painters for professional painters, the DV1 platform delivers exceptional atomisation, metallic control, colour accuracy and transfer efficiency while maintaining outstanding operator comfort.

Featuring the DV1-B HVLP air cap and 1.3mm fluid tip, this spray gun produces a highly balanced spray pattern with excellent atomisation characteristics, helping achieve consistent colour matching and superior metallic orientation. The advanced fluid tip design reduces turbulence and minimises mottling or clouding, particularly when applying difficult metallic and pearl finishes.

The DV1 introduces DeVilbiss Laminar Flow Architecture™ and Air Management Kinetics™ technologies, improving fluid stability and atomisation consistency while reducing material consumption. The lightweight ergonomic body design and advanced air valve system provide precise control and reduced fatigue during extended spraying sessions.

Supplied complete with gravity cup, the DV1-B is the ideal choice for professional refinishers seeking maximum control, finish quality and application efficiency when spraying automotive basecoats.

Key Features

• DV1-B HVLP Air Cap: Optimised specifically for automotive basecoat application.
• 1.3mm Fluid Tip: Ideal for modern solvent and waterborne basecoats.
• Advanced Atomisation: Delivers exceptional metallic control and colour accuracy.
• Laminar Flow Architecture™: Improves fluid stability and consistency.
• Reduced Turbulence: Minimises mottling and clouding.
• Superior Spray Pattern: Balanced atomisation for consistent coverage.
• Professional Ergonomics: Lightweight design reduces operator fatigue.
• Complete Kit: Includes gravity cup and ready-to-spray configuration.

ADDITIONAL INFORMATION

• Brand: DEVILBISS
• MPN: DV1-C-000-13-B
• Type: Gravity Feed Spray Gun
• Model: DV1-B Basecoat
• Air Cap: DV1-B HVLP
• Fluid Tip Size: 1.3mm
• Cup Capacity: 560ml
• Air Inlet Pressure: 2.0 Bar (29 PSI)
• Air Consumption: 395 L/min
• Spray Pattern Length: 330mm @ 200mm Target Distance
• Fluid Flow: 130–180 g/min
• Application: Automotive Basecoat Application
• Professional Use: Yes
