DEVILBISS Advance HD P430 Pressure Spray Gun 1.2mm Conventional

DEVILBISS Advance HD P430 Pressure Spray Gun 1.2mm Conventional

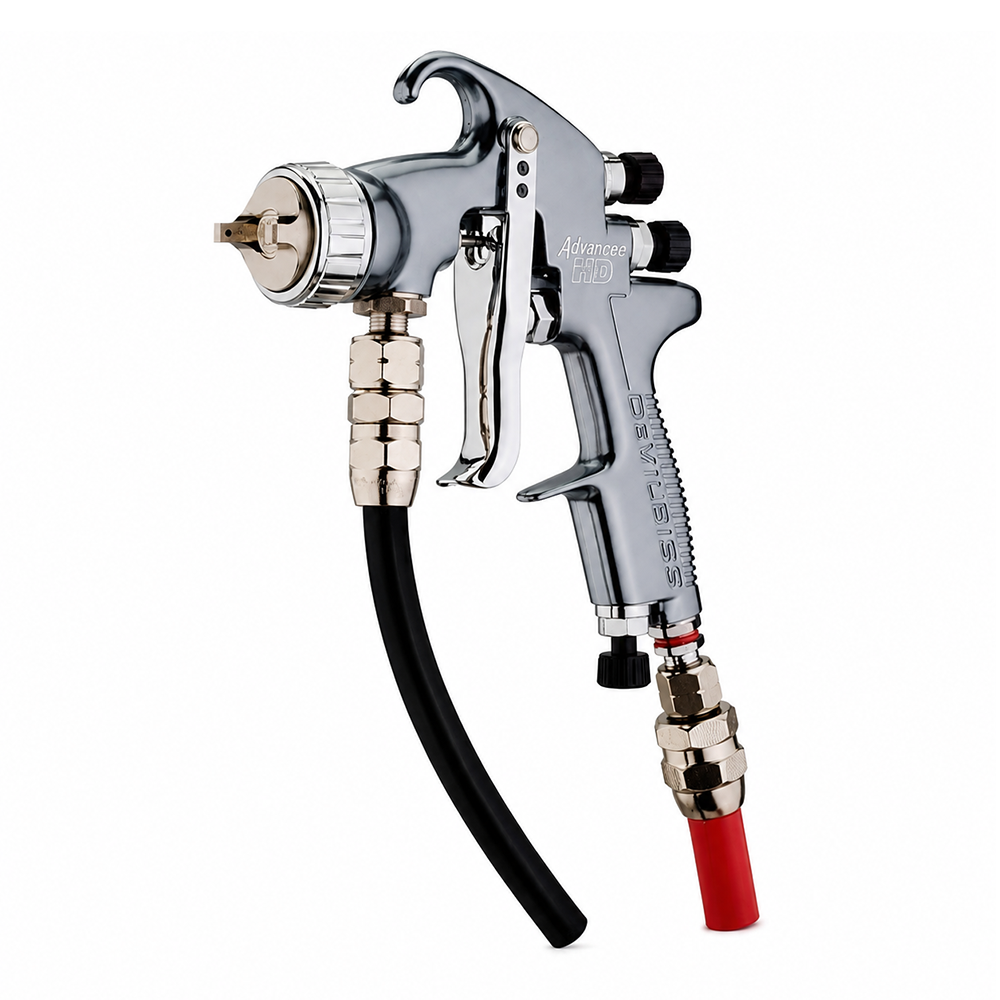

The DeVilbiss Advance HD P430 Pressure Spray Gun is a professional pressure-feed spray gun engineered for demanding industrial finishing applications. This configuration combines a 1.2mm fluid tip with the No. 430 conventional air cap, providing fine atomisation and a controlled 200mm typical fan pattern for accurate coating application.

Designed for high-demand spray finishing, the Advance HD uses stainless steel fluid tips, needles and fluid passageways as standard. Its lightweight, balanced construction, contoured handle and separate balanced air valve are designed to improve trigger control and reduce operator fatigue during extended production work.

The pressure-feed Advance HD platform is suitable for coating wood, metal, plastic and composite substrates with a broad range of coating materials, including solvent-based, waterborne, high-solids and 2K products. The ADV-P430-12 is supplied as the pressure spray gun configuration and is designed for connection to an external pressure-fed material supply.

Key Features

• 1.2mm Fluid Tip: Pressure-feed configuration suited to controlled application across a range of professional coating processes.
• No. 430 Conventional Air Cap: Provides DeVilbiss conventional atomisation with a typical 200mm fan pattern.
• High-Demand Design: Robust, lightweight spray gun developed for demanding industrial finishing and production environments.
• Operator-Focused Ergonomics: Contoured handle, increased finger space and lighter trigger action help improve comfort and control.
• Durable Fluid Components: Stainless steel tip, needle and fluid passageways provide durability for professional spray finishing applications.

ADDITIONAL INFORMATION

• Brand: DeVilbiss
• Product Range: Advance HD
• MPN / Product Code: ADV-P430-12
• Barcode: 5021845033713
• Type: Pressure Feed Spray Gun
• Spray Technology: Conventional
• Air Cap: No. 430 Conventional
• Fluid Tip Size: 1.2mm
• Recommended Air Inlet Pressure: 3.5 bar
• Air Consumption: 339 L/min
• Typical Fluid Flow: 200–280 mL/min
• Typical Fan Pattern: 200mm
• Fluid Tip And Needle Material: Stainless steel
• Fluid Passageways: Stainless steel
• Air Connection: 1/4 inch male universal thread accepting BSP and NPS connectors
• Fluid Connection: 3/8 inch male universal thread accepting BSP and NPS connectors
• Feed Type: Pressure feed
• Suitable Substrates: Wood, metal, plastic and composite substrates
• Coating Compatibility: Suitable for most solvent-based, waterborne, high-solids and 2K coating materials
• Application: Professional and industrial spray finishing
• Certification: CE marked and ATEX approved
• Pack Configuration: Pressure spray gun only
