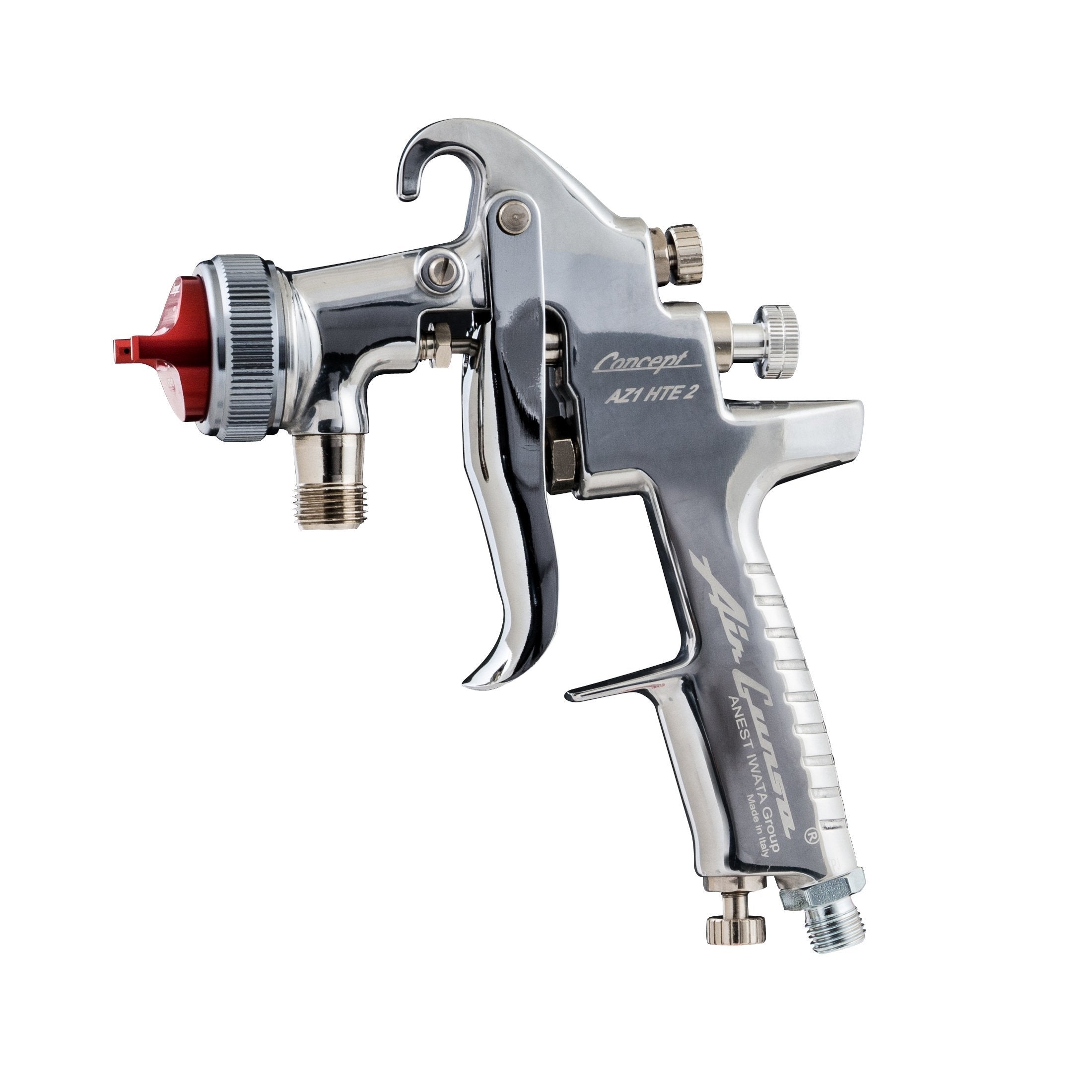

Anest Iwata Concept AZ1 HTE Pressure Feed Spray Paint Gun 2.5mm
Couldn't load pickup availability
AZ1 Concept HTE Spray Gun Only
The AZ1 High Transfer range of pressure spray guns feature a newly designed range of air caps. This new technology allows even less experienced sprayers to obtain high quality and consistent finishing. These air caps develop a long and tulip shaped spray pattern with an extra fine particle distribution and very little overspray.
Part No. | Fluid Nozzle Size [mm] | Air Pressure @ Gun Inlet [bar] | Air Consumption [l/min] | Fluid Output [ml/min] | Fan Pattern [mm] |
---|---|---|---|---|---|
AZ1HTE2P10 | 1.0 | 2.5 | 416 | 400 | 390 |
AZ1HTE2P13 | 1.3 | 2.5 | 416 | 400 | 400 |
AZ1HTE2P15 | 1.5 | 2.5 | 416 | 400 | 410 |
AZ1HTE2P18 | 1.8 | 2.5 | 416 | 400 | 410 |
AZ1HTE2P20 | 2.0 | 2.5 | 416 | 400 | 410 |
AZ1HTE2P25 | 2.5 | 2.5 | 333 | 400 | 320 |
AZ1HTE2P30 | 3.0 | 2.5 | 333 | 400 | 320 |
AZ1HTE2P35 | 3.5 | 2.5 | 333 | 400 | 330 |
