For application to sides and rear of large trucks, trailers and other vehicles to increase their visibility, especially when the vehicle is turning or crossing roadways

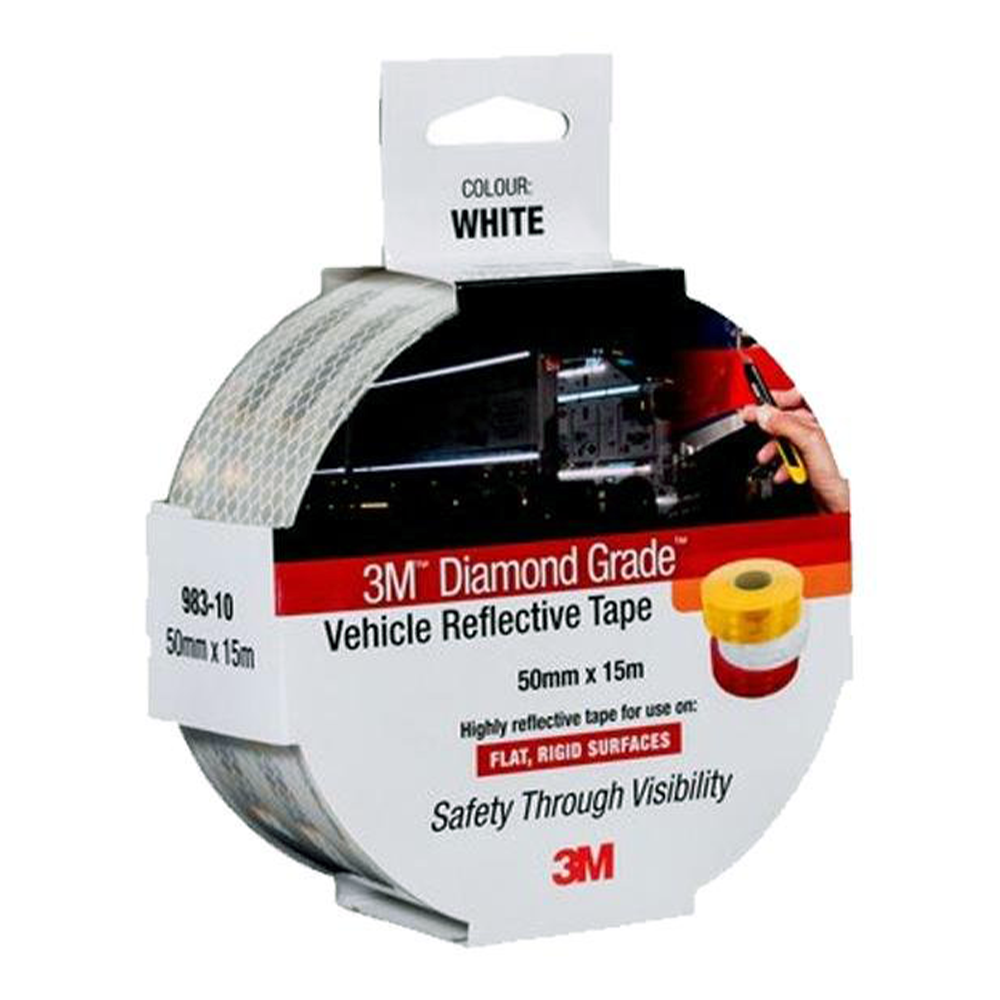

- 3M™ Diamond Grade™ Conspicuity Markings Series 983 is a highly reflective microprismatic lens sheeting
- No dirt and water penetration due to edge sealing
- Pressure sensitive adhesive.
- Non-corroding and excellent weather resistance
|
Adhesive Type
|
Pressure-sensitive
|
|
Application Instructions
|
see Product Bulletin
|
|
Applications
|
Marking, Trucks & Trailers
|
|
Brand
|
Diamond Grade™
|
|
Certifications and Specifications
|
NHTSA
|
|
Construction
|
Rigid
|
|
Imaging Method
|
Digital Print, Screen Print
|
|
Overall Diameter (Metric)
|
125 mm
|
|
Overall Length (Metric)
|
15 Meter, 45.7 Meter
|
|
Overall Width (Metric)
|
100 mm, 1219 mm, 150 mm, 152.4 mm, 50 mm, 50.8 mm, 53.5 mm, 55 mm, 75 mm, 76 mm, 80 mm, 914 mm
|
|
Performance Features
|
Retroreflective
|
|
Performance Level
|
Diamond Grade
|
|
Product Colour
|
Fluorescent Yellow Green, Red, Red/White, White, Yellow
|
|
Product Series
|
983
|
|
Size
|
101.6mm x 15m
|
|
Substrates
|
Painted or Unpainted Metal Without Rivets
|
|
Total Recycled Content %
|
C
|
