Anest Iwata W400WBX Air Cap High TEC Gold Gravity Spray Gun With 600ml Pot

Only 1 left
SKU: W400WBX134GC
$799.99 AUD inc. GST
Nozzle
This is a Sample Product Title
Was $200.00 Now $100.00

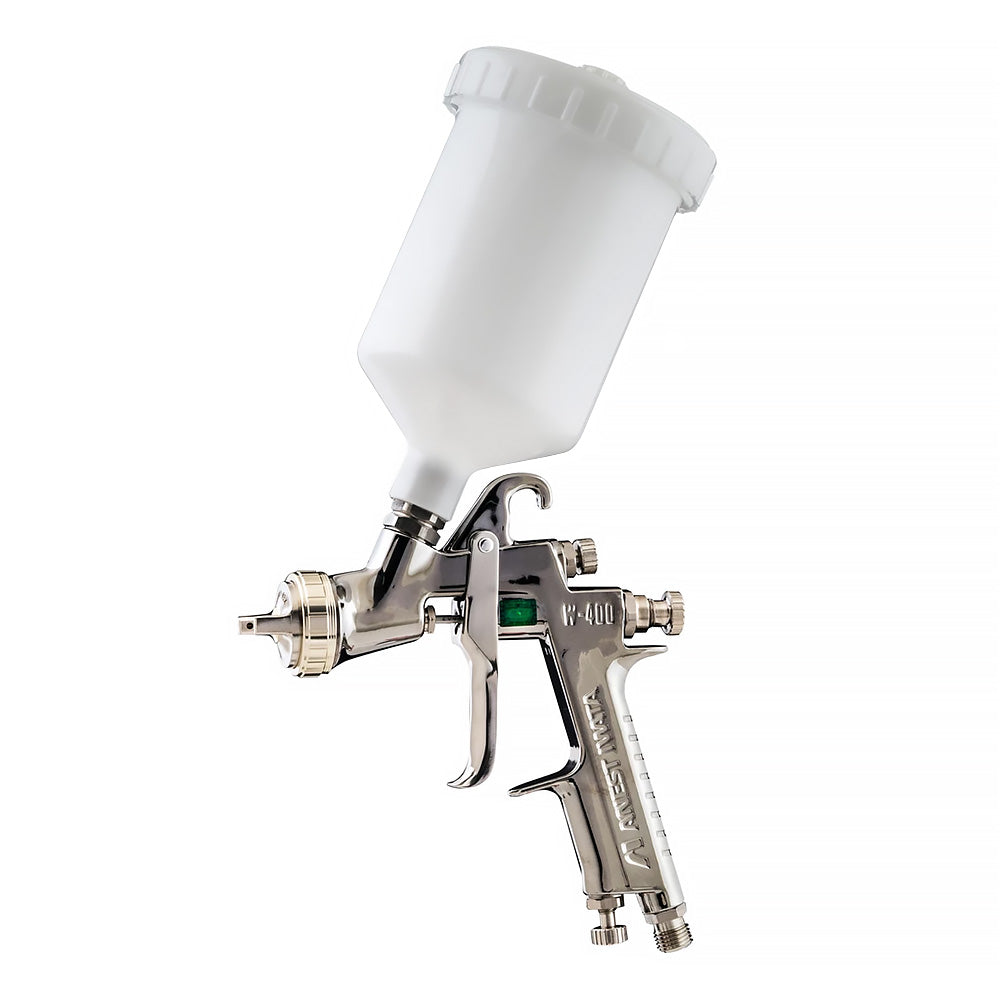

W400 High TEC Spray Gun, WBX Air Cap, complete with 600ml Pot
Improved atomization with waterbased coatings
The WBX applies waterborne basecoats and HS clearcoats with superior atomization and control.

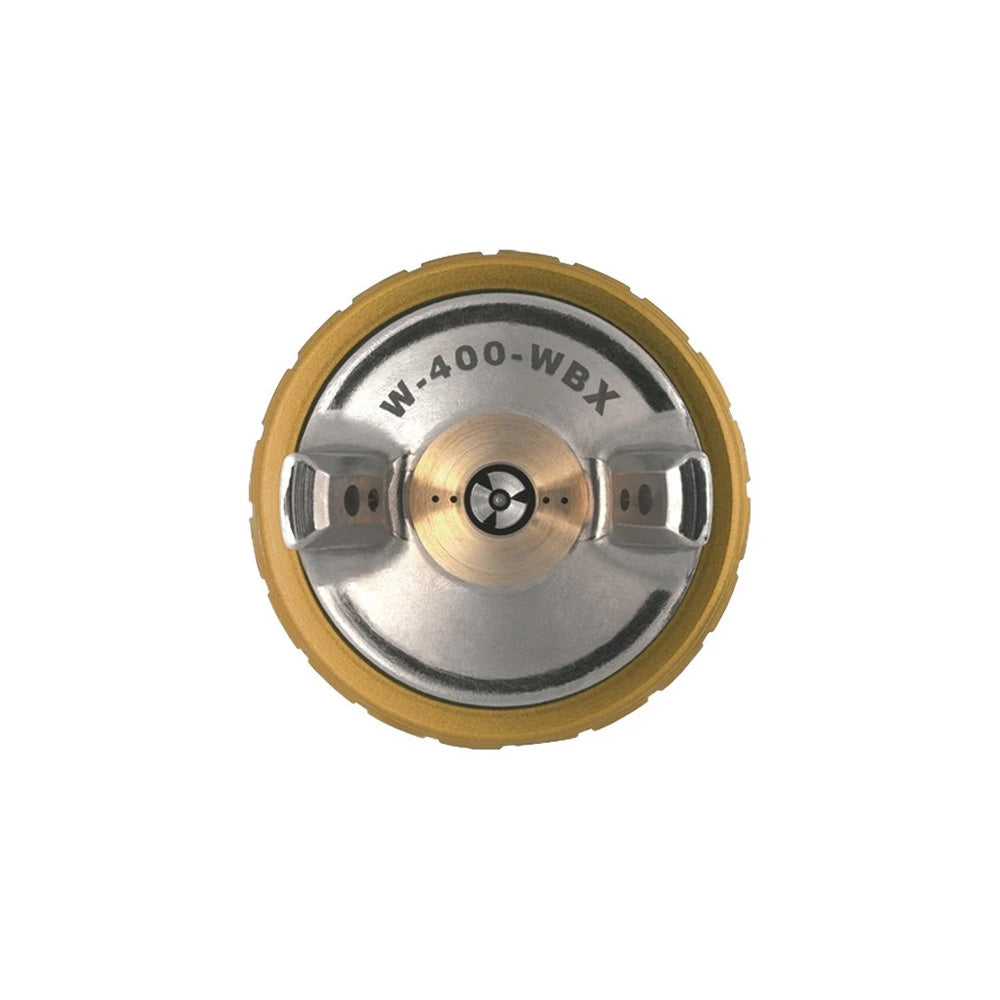

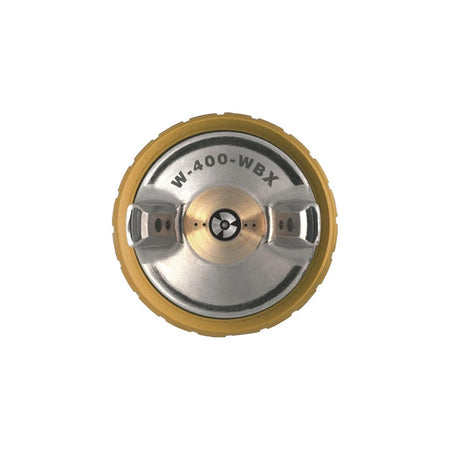

The WBX air cap has a long, flat, fan pattern, which gives an even overlap on modern paints. This is essential for mottle-free basecoat application and a flat and even lay down on clears.
The WBX delivers a consistent droplet size when atomizing. This is vital to achieve a consistent application of waterborne basecoats.
Fluid delivery control is essential for colour reproduction of waterborne basecoats.

Part No. Fluid Nozzle Size [mm] Air Pressure@ Gun Inlet [bar] Air Consumption [l/min] Fluid Output [ml/min] Fan Pattern [mm] Cap # Pot type / size
W400WBX124GC 1.2 2 370 150 360 WBX PCG.6PM
W400WBX134GC 1.3 2 370 195 390 WBX PCG.6PM
W400WBX144GC 1.4 2 370 200 390 WBX PCG.6PM
